Single Spring Mechanical Seals-GWUS2
Short Description:
Conditions:Temperature:-20℃to+180℃
Pressure:≤1.0Mpa Speed:≤15m/s
Rotary Ring: Sic/ TC
Stationary Ring: Carbon/Sic/ TC.
O-ring: VITON, NBR EPDM
Spring and Metal Parts: SUS304/SUS316
|

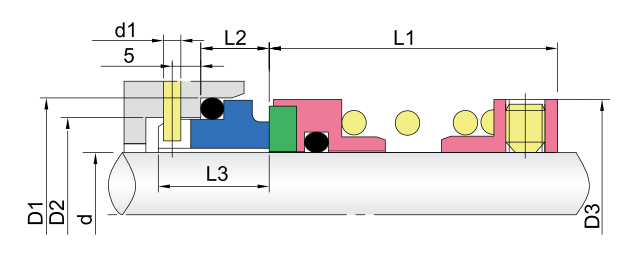

Seal Sized |
D3 |
D2 |
D1 |
L1 |
L2 |
L3 |
|
20 |
34.5 |
29.1 |
33.3 |
37.3 |
72 |
11 |
|
25 |
41.0 |
33.8 |
39.7 |
40.0 |
9.2 |
12 |
|
30 |
45.5 |
38.6 |
44.5 |
41.6 |
9,2 |
12 |
|
35 |
50.0 |
43.5 |
49.2 |
48.0 |
9.2 |
12 |
|
38 |
53.0 |
46.3 |
52.0 |
62.3 |
9.2 |
12 |
|
40 |
55.0 |
48.1 |
54.0 |
48.0 |
9.2 |
12 |
|
45 |
60.0 |
53.0 |
58.7 |
48.0 |
9.2 |
12 |
|
50 |
66.0 |
59.3 |
65.1 |
59.1 |
9.2 |
12 |
|
55 |
71.0 |
64.0 |
69.9 |
60.7 |
9.2 |
16 |
|
60 |
77.0 |
70.4 |
76.2 |
63.8 |
9.2 |
16 |
|
65 |
82.0 |
75.2 |
81.0 |
67.0 |
9.2 |
16 |
|
70 |
88.0 |
79.9 |
85.7 |
67.0 |
9.2 |
16 |
|
75 |
92.0 |
84.7 |
90.5 |
71.8 |
9.2 |
16 |
|
80 |
99.5 |
92.6 |
98.4 |
78.1 |
9.2 |
16 |
|
85 |
105.5 |
98.9 |
104.8 |
78.1 |
9.2 |
16 |
|
90 |
110.5 |
103.8 |
109.5 |
82.9 |
9.2 |
16 |
|
95 |
115.5 |
108.5 |
114.3 |
82.9 |
9.2 |
16 |
|
100 |
121.0 |
113.3 |
119.1 |
82.9 |
9.2 |
16 |
|
105 |
129.0 |
121.2 |
127.0 |
89.2 |
9.2 |
16 |
|
110 |
134.0 |
126.0 |
131.8 |
89.2 |
9.2 |
16 |
|
115 |
139.0 |
130.7 |
136.5 |
89.2 |
92 |
16 |
|
120 |
144.0 |
137.0 |
142.9 |
95.5 |
92 |
16 |
